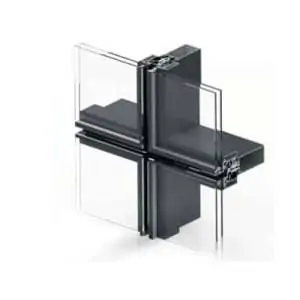

Eco C52 ST - Facade system

glass only external style

Thermal insulation Uf

Ucw from 0,7 (W/m²K)

Air tightness window

(EN 12152) CLASS AE

Watertightness

(EN 12154) CLASS RE 750

Wind tightness

(EN 13116) APT

A new generation of facade consisting of a base system with an ample range of mullions and transoms that provides answers to the different style and construction needs for architectural projects.

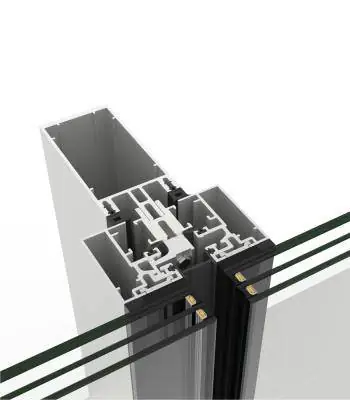

With ECO C52 ST the glass is glued to an aluminium frame using structural silico ne. The fixing of the glassframe set to the supporting profiles is do ne by using the system clips.

The characteristic style offered by this system is the same aspect, whether with fixed glazing or with practicables, both exterior and interior.

Its glass only external style is with an open groove and the first weather barrier being an EPDM gasket which is
installed around the perimeter of each module. An overlap closes the space between the gaskets.

Share on facebook
Facebook
Share on pinterest
Pinterest
Share on linkedin
LinkedIn

Specification

  • Key features
  • Technical Specifications
  • Performance
» Wide variety of mullions (from 16 to 230 mm) and transoms  (from 22,5 to 205,5) that solve the different aesthetic and constructive needs of the architectonic sector

» Internal seen section 52 mm

» Extensive profile range, their mechanical unions allows for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations

» Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles


» The glass is glued to a aluminum frame, which is glued to the main structure using clips


» This system offes the same outside look, wheter it is fixed glazing or proyecting opening. Only glass finished, with EPDM gaskets

» Glazing

Maximum glazing 38 mm*
Mínimum glazing 6 mm

*Consult us for greater thicknesses


» Opening possibilities

Hidden Top Hung



» Sections

Mullion 52 mm
Transom 52 mm



» Profile thickness

Mullion 2,1 & 3 mm
Transom 2,1 mm



» Minimum / Maximum opening dimensions

Min. Width (L) = 500 mm
Min. Height (L) = 650 mm
Max. Width (L) = 2500 mm
Max. Height (H) = 2500 mm



» Maximum weight / sash

180 Kg


» Maximum weight of fixed lights

350 kg
Air Permeability
(EN 12152) CLASS AE
Watertightness
(EN 13114) CLASS RE750
Wind load resistance
(EN 13116) APT
Thermal insulation (Uf)
Ucw from 0,7 (W/m²K)
Maximum acoustic insulation


Photos

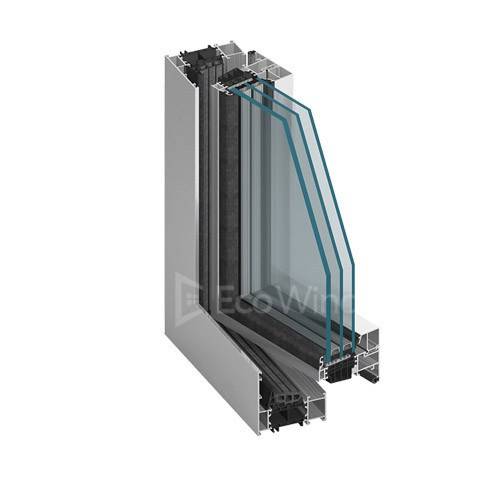

We offer high variety of Aluminum windows and doors. Every order is custom made according to our customers requirements. Our modern construction solutions make it possible to create extremely large g lazed areas and improve building design and interior décor not available with most of our competitors, for example 25’ W x 9’H lift and slide doors. We have almost an unlimited potential in terms of both colors and their different shades for our aluminium components. Another key benefit for our products are the components utilizing multi point locking. This is achieved through a link gear running around the window sash, which operates pins which in turn lock into keepers located around the perimeter of the sash opening. Depending on the size of sash used, there can be up to twelve locking points on any one sash. In doors a six-point lock is used. This comprises of four compression roller pins, one latch and one dead bolt. All the locks on any one sash are operated by one lever and secured by one key. Further this creates insulating advantage as an even sash seal is achieved as well as enhanced security. Pleae note we can perform the installation or assit our customer in an installation consult capacity.
