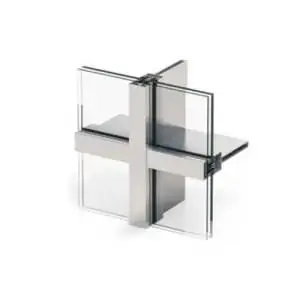

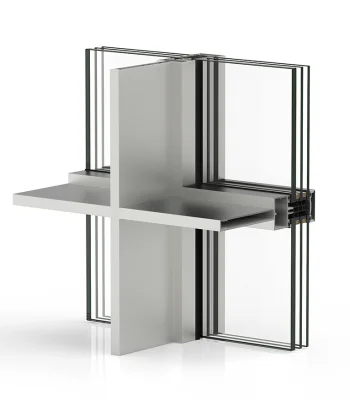

Eco C Equity - Facade system

Great thermal braking

Thermal insulation Uf

Ucw from 0,6 (W/m²K)

Air tightness window

(EN 12152) CLASS AE

Watertightness

(EN 13114) CLASS RE1500

Wind tightness

(EN 13116) APT

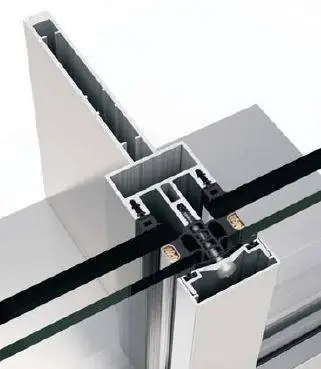

With a visible section from inside of just 18 mm, both in the muliion and the transom, this new system of curtain wali presents a minimalistic and slim aesthetic which provides the building with a total entrance of light.
lts muliions and transoms are flush in depth. As a result, the flush combination is uniform in the inside face of the curtain wall.

The great Thermal Break, combined with its large glazing capacity of up to 50 mm with thick and energy efficient glasses, provide this new range of curtain wali superb thermal and acoustic performance.

The combination of muliions and transoms is compatible with the foliowing systems: C52 TP, C52 SG, C52 TPH, C52 TPV, C52 ST and C52 SST.

Share on facebook
Facebook
Share on pinterest
Pinterest
Share on linkedin
LinkedIn

Specification

  • Key features
  • Technical Specifications
  • Performance

» Internal seen section of just 18 mm


» Minimalist and slim look


» Its mullions and transoms offer, as a result of their joint, an uniform union on the outside face of the curtain wall


» The combination of mullions and transoms is compatible with the following systems: TP 52, SG 52, TPH 52, TPV 52, ST 52 and SST 52

» Glazing

Maximum glazing 64 mm*
Mínimum glazing 6 mm

*Consult us for greater thicknesses



» Sections

Mullion 18 mm
Transom 18 mm



» Profile thickness

Mullion 2,6 mm
Transom 2,6 mm



» Polyamide strip length

6, 12 & 30 mm stackable profiles



» Covers

85 mm deep elliptical cover
H shape cover, 34 mm deep
Rectangular cover:14, 19 100 & 145 mm deep
Pyramid shape cover, 155 mm deep



» Finishes

Powder coating / Anodized
Air Permeability
(EN 12152) CLASS AE
Watertightness
(EN 13114) CLASS RE1500
Wind load resistance
(EN 13116) APT
Thermal insulation (Uf)
Ucw from 0,6 (W/m²K)
Maximum acoustic insulation

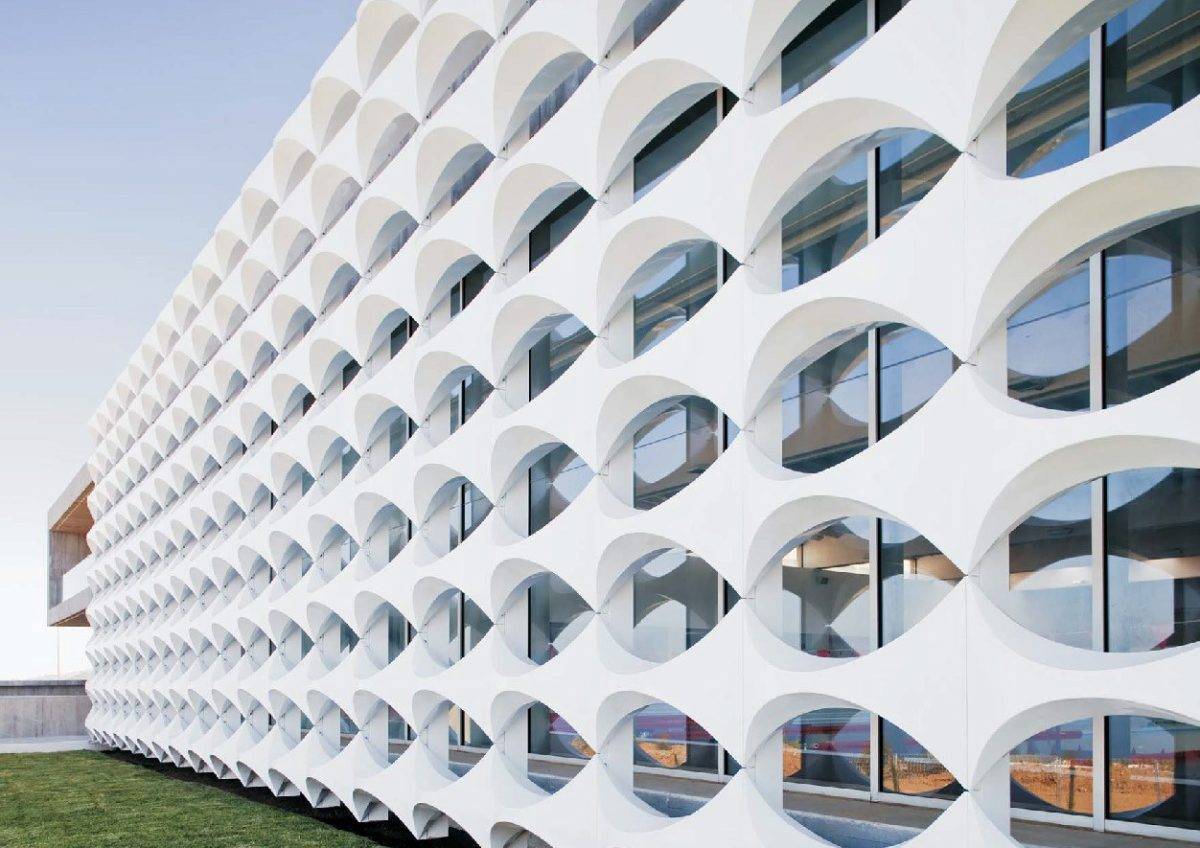

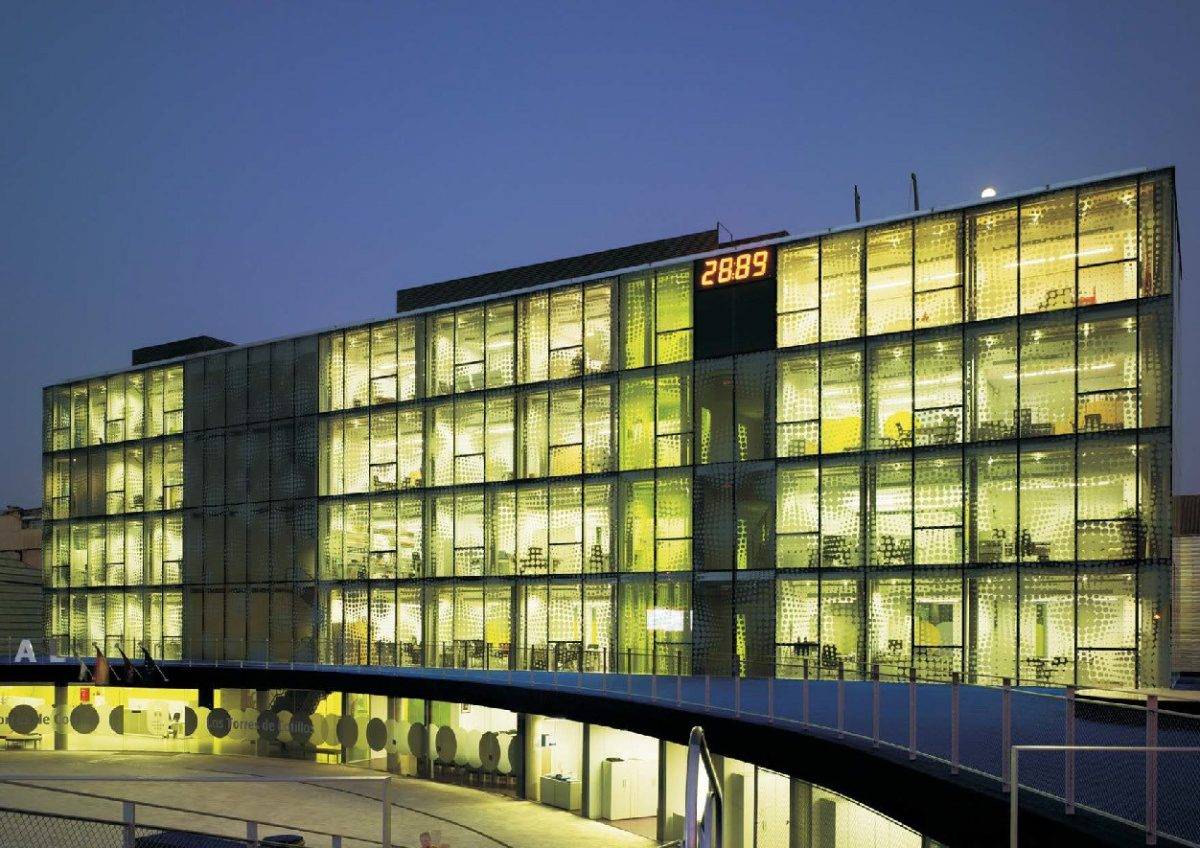

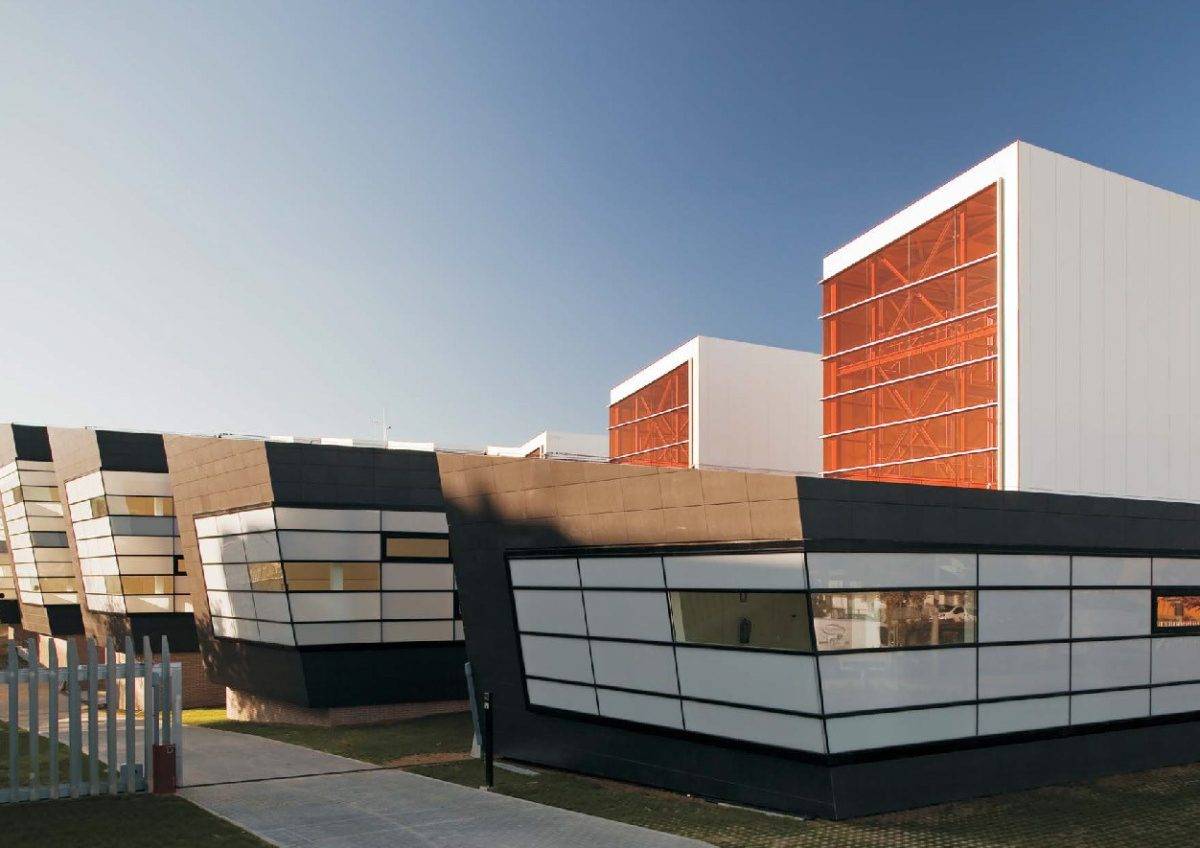

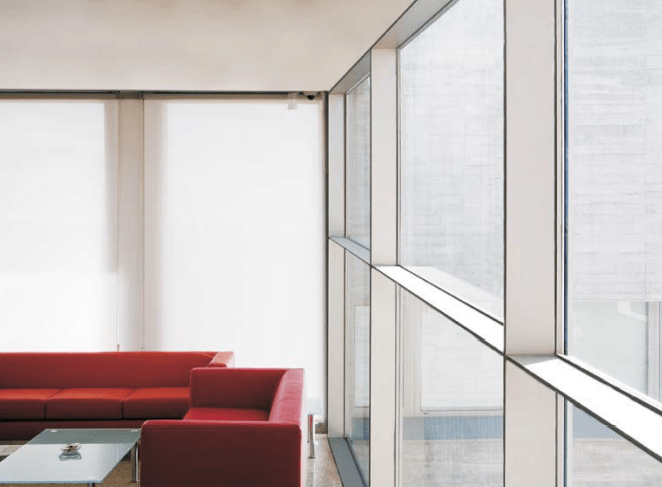

Photos

We offer high variety of Aluminum windows and doors. Every order is custom made according to our customers requirements. Our modern construction solutions make it possible to create extremely large g lazed areas and improve building design and interior décor not available with most of our competitors, for example 25’ W x 9’H lift and slide doors. We have almost an unlimited potential in terms of both colors and their different shades for our aluminium components. Another key benefit for our products are the components utilizing multi point locking. This is achieved through a link gear running around the window sash, which operates pins which in turn lock into keepers located around the perimeter of the sash opening. Depending on the size of sash used, there can be up to twelve locking points on any one sash. In doors a six-point lock is used. This comprises of four compression roller pins, one latch and one dead bolt. All the locks on any one sash are operated by one lever and secured by one key. Further this creates insulating advantage as an even sash seal is achieved as well as enhanced security. Pleae note we can perform the installation or assit our customer in an installation consult capacity.
