Eco C Ventilated - Facade system

light facade system

Thermal insulation Uf

Ucw from 0,7 (W/m²K)

Air tightness window

(EN 12152) CLASS AE

Watertightness

(EN 13114) CLASS RE1500

Wind tightness

(EN 13116) APT

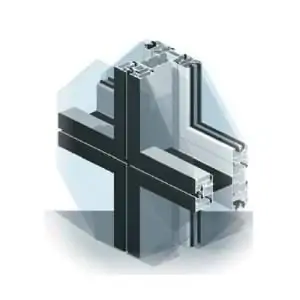

A double light facade system, structural or semi-structural in its external style.


ECO C Ventilated incorporates a 140 mm chamber between the external and internal glazing in order to allow for the natural ventilation of the facade, reducing the thermal transmission towards the interior and achieving large energy efficiency for the building.


Access to the chamber is possible by way of practicable openings that facilitate cleaning and maintenance.

Share on facebook
Facebook
Share on pinterest
Pinterest
Share on linkedin
LinkedIn

Specification

  • Key features
  • Technical Specifications
  • Performance

» Internal seen section 39 mm

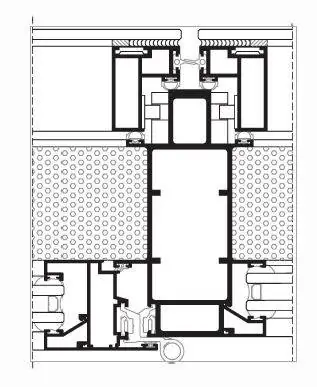

Sections
Mullion 145 mm. Transom 45 & 34 mm.

Projecting opening
Max. Width (L) = 2.200 mm. Max. Height(H) =2.200 mm.



» Maximum weight / sash

Projecting opening 140 Kg. Fixed light 400 Kg.



Air Permeability

Watertightness

Wind load resistance

Thermal insulation (Uf)
Ucw from 0,7 (W/m²K)
Maximum acoustic insulation


Photos

We offer high variety of Aluminum windows and doors. Every order is custom made according to our customers requirements. Our modern construction solutions make it possible to create extremely large g lazed areas and improve building design and interior décor not available with most of our competitors, for example 25’ W x 9’H lift and slide doors. We have almost an unlimited potential in terms of both colors and their different shades for our aluminium components. Another key benefit for our products are the components utilizing multi point locking. This is achieved through a link gear running around the window sash, which operates pins which in turn lock into keepers located around the perimeter of the sash opening. Depending on the size of sash used, there can be up to twelve locking points on any one sash. In doors a six-point lock is used. This comprises of four compression roller pins, one latch and one dead bolt. All the locks on any one sash are operated by one lever and secured by one key. Further this creates insulating advantage as an even sash seal is achieved as well as enhanced security. Pleae note we can perform the installation or assit our customer in an installation consult capacity.
