A104E - Passive Aluminum System

Passive units with Uw factor on an operable window from 0.09

Wind tightness

class C5/B5 PN-EN 12210:2001

Air tightness window

class 4 PN-EN 12207:2001

Watertightness

class AE 1800 PN-EN 12208:2001

Thermal insulation for the window being opened

from 0,53 W/(m2K)

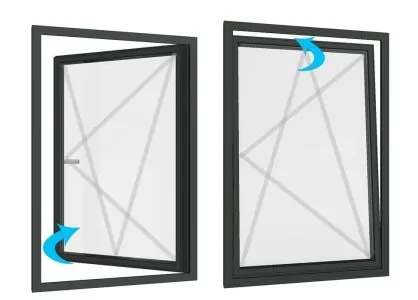

Excellent thermal performance meeting all requirements for passive construction. This system has been certified by the Passive House Institute PHI Darmstadt. Offer includes Casement, Awning, Tilt & Turn and Pivot options. Easily adaptable with any our other aluminum doors and store fronts.

Share on facebook
Facebook
Share on pinterest
Pinterest
Share on linkedin
LinkedIn

Specification

  • Key features
  • Technical Specifications
  • Performance
  • excellent thermal insulation performance
  • dual color option
  • Multi point locking hardware
  • Wide range of acoustic and security glazing possibilities
  • 260 color options
  • Powder coating with smooth or textured finish
  • Optional marine grade or anodizing finish
  • Compatible with other MB systems allowing for massive design flexibility and project solutions

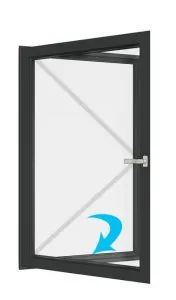

  • French door inswing or outswing options
  • exterior doors are available both glazed and paneled
  • IG of up to 3 1/8”

Specification

Depth of frame3 3-4
Depth of vent4
Glazing rangeframe: up to 2 3/4
operable unit: up to 3 1/8

Size & Weight Limitations

Maximum size (H×W)H to 114 W to 67
Max weight lbs352
Air Permeability class 4 PN-EN 12207:2001
Watertightness class AE 1800 PN-EN 12208:2001
Wind load resistance class C5/B5 PN-EN 12210:2001
Thermal insulation (Uf) from 0,53 W/(m2K)

Why A104 Passive?

  • Passive House Institute Darmstadt-certified windows: A104 Passive SI and A104 Passive Aero
  • excellent thermal insulation performance for openable window: UW from 0,53 W/(m2K) and for door UD from 0,62 W/(m2K)
  • standard-exceeding tightness and insulation performance
  • large range of glazing, up to 81mm
  • exterior doors are available both glazed and panelled – it’s a perfect entrance door to a modern home

A104 Passive can also be used to fabricate highly aesthetic panel doors that meet the expectations of the most demanding users.

Photos

We offer high variety of Aluminum windows and doors. Every order is custom made according to our customers requirements. Our modern construction solutions make it possible to create extremely large g lazed areas and improve building design and interior décor not available with most of our competitors, for example 25’ W x 9’H lift and slide doors. We have almost an unlimited potential in terms of both colors and their different shades for our aluminium components. Another key benefit for our products are the components utilizing multi point locking. This is achieved through a link gear running around the window sash, which operates pins which in turn lock into keepers located around the perimeter of the sash opening. Depending on the size of sash used, there can be up to twelve locking points on any one sash. In doors a six-point lock is used. This comprises of four compression roller pins, one latch and one dead bolt. All the locks on any one sash are operated by one lever and secured by one key. Further this creates insulating advantage as an even sash seal is achieved as well as enhanced security. Pleae note we can perform the installation or assit our customer in an installation consult capacity.
